LS208

Applications	Feature
Touring performance	Wavefront Coupling Technology
Theatre and multi-function hall	Compact bi-amp system
Church	Neodymium high-sensitivity driver,maximum headroom
	Small enclosure, light, high SPL to Volume ratio

Technical parameters
Frequency response	60 Hz ～ 16 kHz (±3dB)；50 Hz ～ 18 kHz（-10dB）
Nominal Coverage(-6dB)	10° (V) vertical adjustable
Sensitivity (@1w/1m)	HF/LF: 110dB SPL/ 96dB SPL
Power Rating （AES）	HF/LF:120W/500W(AES)
Nominal Impedance	HF/LF: 16/16 ohm
Max SPL	HF:136 dB SPL peak LF:130 dB SPL peak
Drivers	LF 2x8" woofer(50mm voice coil) HF 1x3" compression driver

Physical data

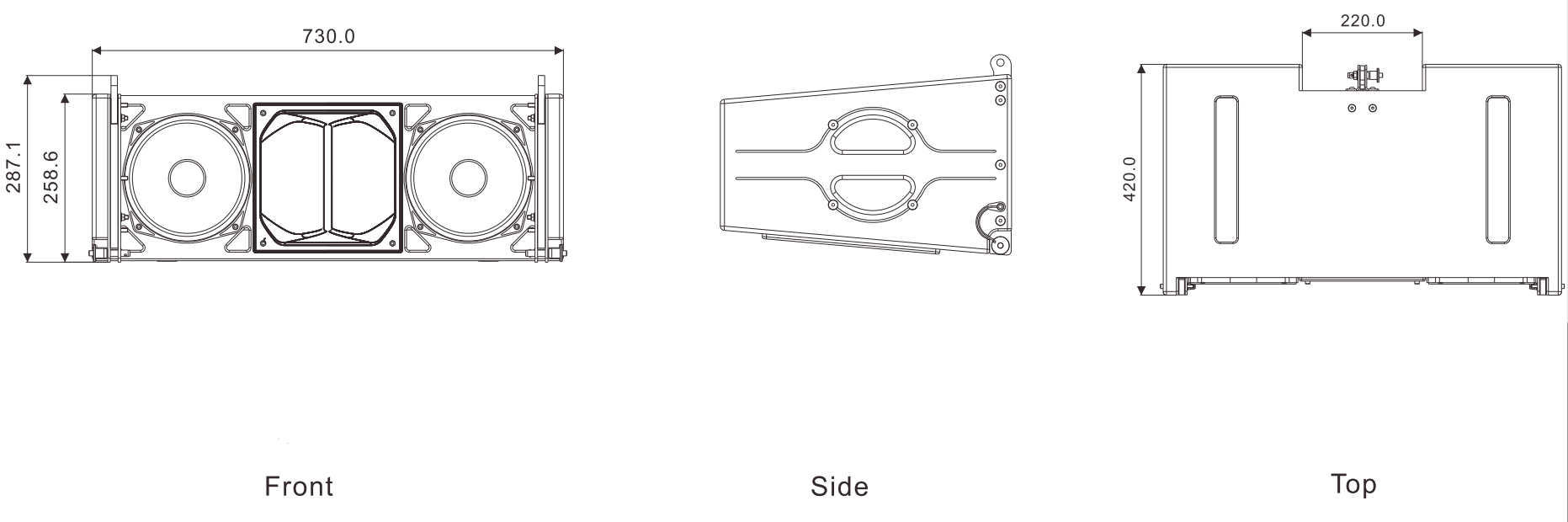

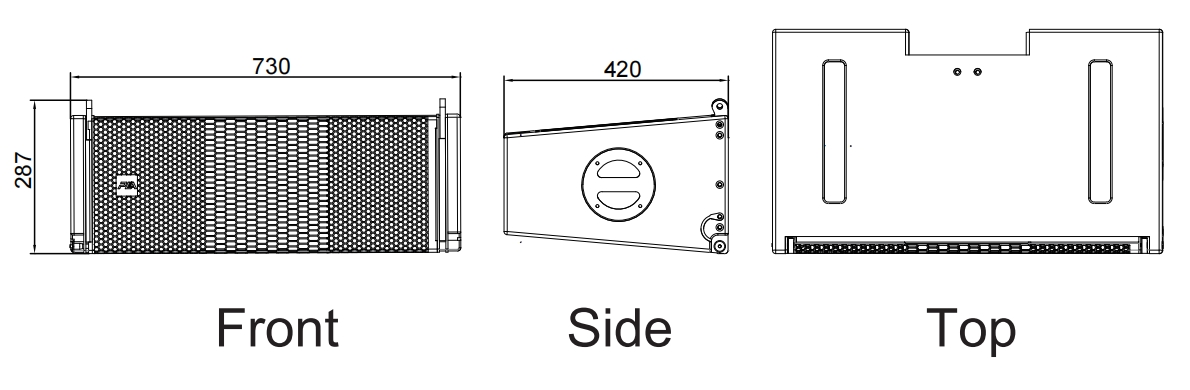

Dimensions	287.1 X 730 X 420mm
Weight	23.5 kg
Connectors	2 XNL .4 connectors
Speaker Cables	1+1-...Full range, 2+2-...N/C
Materials	1 5mm 1 8mm Baltic birch plywood
Finsh	Black Polyurea paintings
Grille	Black epoxy Imesh grille with acoustically reticulated cloth
Rigging	0,1 ,2,3, ,4,5,6,7 ,8,9,10degree adjustable
