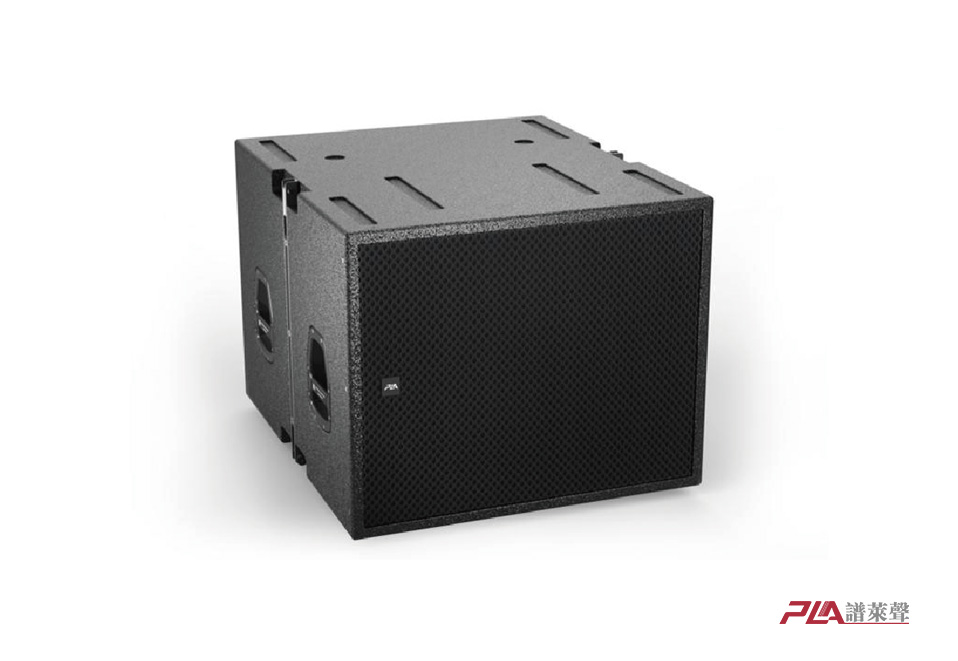

L21P

Applications	Feature
Meeting room Background music	Neodymium magnetic high sensitivity subwoofer
	High output box structure
	DSP module inside(Maximum 8500W)
	Extra-low frequency limit
	Two-point hanging mode
	1 pcs L21P can promote 1pcs L21

Technical Parameters

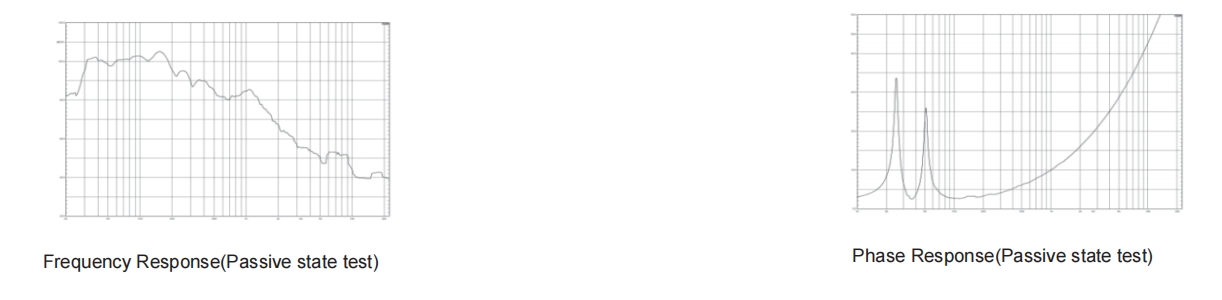

Frequency response	32 Hz ~ 150 Hz (±3 dB ) ;28 Hz ~ 200 Hz (-10 dB )
Nominal Coverage(-6dB)	Omnidirectional
Maximum SPL	134 dB/144 dB SPL peak
Transducers	LF:1x21" All Condition Woofer
Active Module Maximum Output Power	8500W
Dynamic Range	65 dB(A计权@8ohm)
Output Noise	-44 dB(A计权@8ohm)
Output Electric Circuit	Class D circuit, DSP module inside
Speaker Cables	WP4:1-2+/NL4:1+1-
Connectors	XLR+powerCON+speakon
Cooling method	Airflow from back to front, forced cooling

Physical Data

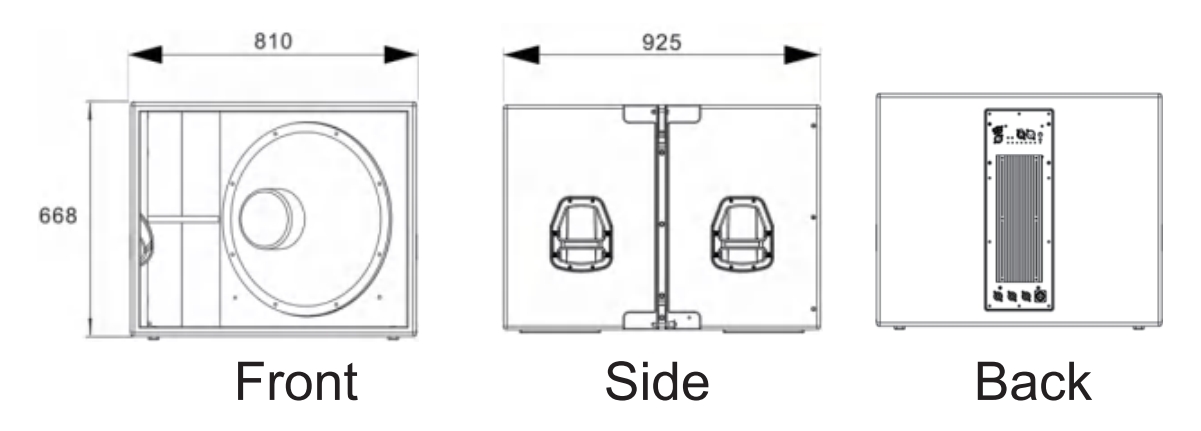

Dimensions	810x925x668mm
Weight	89 kg
Material	Imported multi-plywood Environmentalwaterproof and anti corrosion coatings
Finsh	Black polyurea paintings .
Grille	Black epoxy mesh grille with acoustically reticulated foam
