LS18P

Applications	Feature
Touring performance	Built-in amplifier and DSP, self-powered 18inch subwoofer
multi-function hall	Working with LS10, Surface design has the space for taking in 2pcs LS10
Club	Bottom with wheels and bumper, convenient for transportation and construction of multi-mode

Technical parameters
Frequency response	40Hz~ 200Hz(+ 3 dB ) ；28Hz-250Hz(-10dB)
Nominal Coverage(-6dB)	Omnidirectional
Max SPL	136 dB SPL peak
Drivers	1 X 18"woofer (100mm voice coil)
Power Rating （AES）	1200W
Power requirement	200- 240V ~ 50-60Hz
Amplifier module	Dual channel 2000W
Power requirement	0.82%
Snr	104dB
Output electric circuit	Class D circult
Cooling system	Airflow from back to front, F orced cooling

Physical data

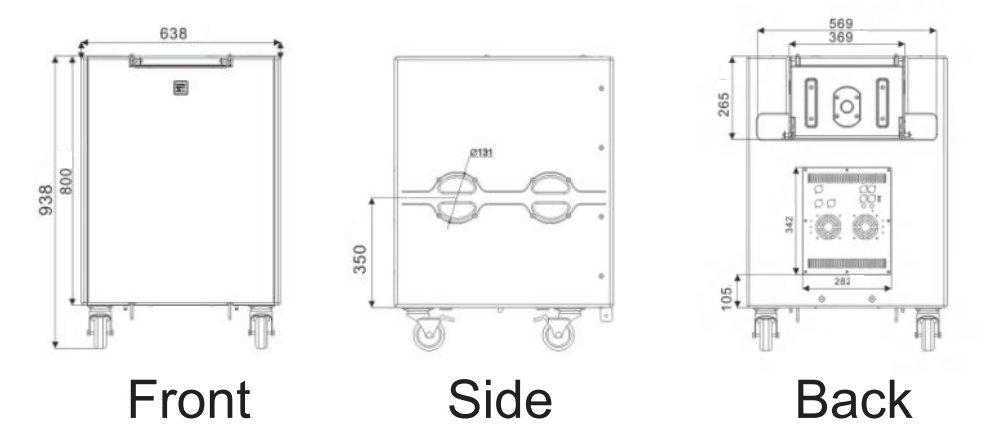

Dimensions	938 X 638 X 700mm
Weight	70Kg
Connectors	NEUTRIKNL4; USB
Speaker Cables	1+1- ( NEUTRIKNL4 1 ) ;1+1- ( NEUTRIKNL4 2 )
Materials	15mm 18mm Baltic birch plywood
Finsh	Black Polyurea paintings
Grille	Black epoxy mesh grille with acoustically reticulated cloth
Rigging	0、- -5° degree adjustable
