LS110P

Applications	Feature
Touring performance	Dual 15-inch rubber-rimmed neodymium-iron-boron active subwoofers
Theatre	Three Channel Amplifier Module(Maximum 4700W)
Church	Can promote 1-4 LS110 Line Array Speacker
Multipurpose hall	With hanging parts, can be stacked, can be suspended

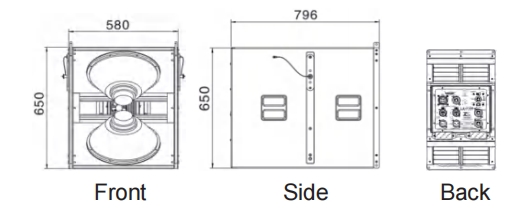

	Dimensions appearance is identical to the LS110S

Technical specification

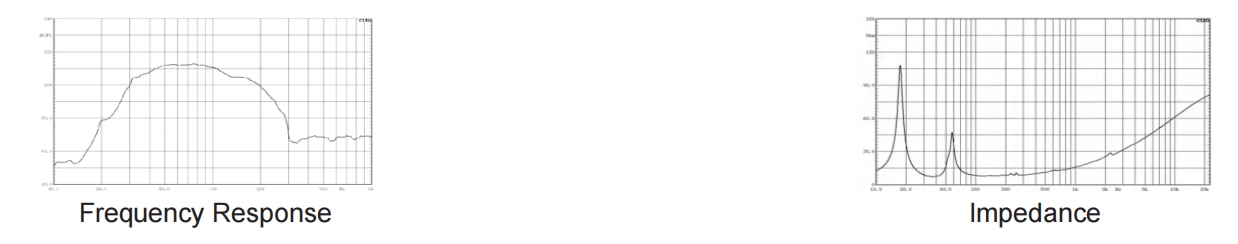

Frequency Response	38Hz-100KHz(±3dB) 30Hz-120KHz(-10dB)
Power Rating(AES)	1000W
Transducers	LF:2x15" All Condition Woofer
Maximum SPL	127dB/137dB SPL peak
Power Rating	Inside 700W+2x2000WSelf-poweredAmplifier
THD+N	≤1%(1kHz,Full power 4Ω)
SNR	≥103 dB
Gain (1kHz 8Ω)	20 dB(CH1),32dB(CH2、3)
Input connectors	XLR Female input /Male output
Impedance	20 kΩBalanced/10 kΩUnbalanced
Output connectors	NL4MP(1+/1-;LF/2+/2-;HF)
Output Electric Circuit	Class D circuit

Physical data
Dimensions	580x796x650mm
Weight	64 kg
Connectors	NEUTRIK NL4MP*2
Speaker Cables	1+1-
Material	Imported multi-plywood Environmental waterproof and anti corrosion coatings
Finish	Black Polyurea paintings
Grille	Black epoxy mesh grille with acoustically reticulated cloth
