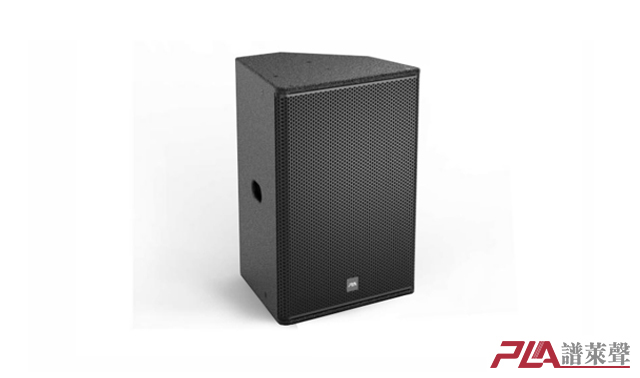

PC15
| Feature | |
| Phase Coherent Technology |
| Technical parameters | ||

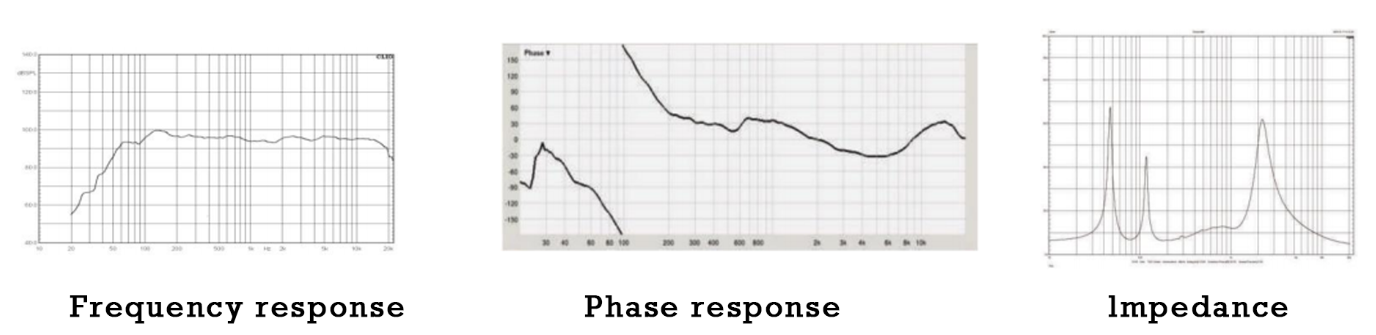

| Frequency response | 60 Hz ~ 18 kHz (±3 dB )45 Hz ~ 20 kHz (-10 dB ) | |
| Nominal Coverage(-6dB) | 100°（H） 55°(V) Constant directivity | |
| Sensitivity (@1w/1m) | 98 dB SPL | |
| Power Rating （AES） | 450W | |
| Nominal Impedance | 8 ohm | |
| Max SPL | 124 dB/130 dB SPL peak | |
| Drivers | LF 1 x 15"（75mm voice coil）woofer HF 1 x 44mm voice coil compression driver | |
| Physical data | ||

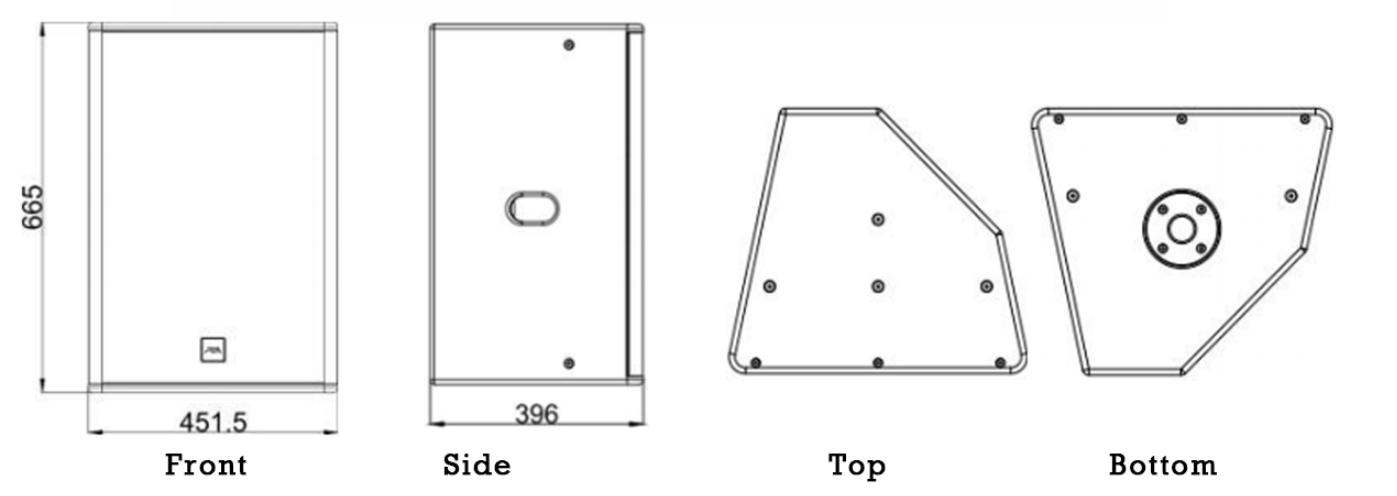

| Dimensions | 665 x 451.5 x 396 mm | |
| Weight | 31 kg | |
| Connectors | 2 x NL 4MP Neutrik Speakon connectors | |
| Speaker Cables | 1+1- | |
| Materials | 18mm，24mm birch plywood | |
| Finsh | Black polyurea paintings | |
| Grille | Black epoxy mesh grille with acoustically reticulated foam | |
-
