PM15
Application | Feature Phase Coherent Technology |
Bar | Frequency response special design to avoid auditory fatigue |
Theatre | Rotatable and asymmetrical horn |
Stage Monitor | 13x M8 rigging points |
Pole mount socket |
Technical specification | |

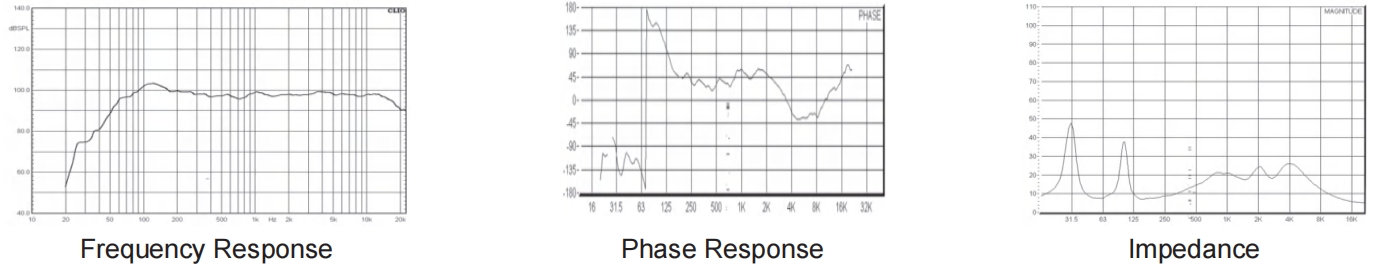

Frequency Respond | 60 Hz ~ 18 kHz(±3 dB) ; 45 Hz ~ 20 kHz(-10 dB) |
Nominal Coverage(- 6 dB) | 50°-100°（H）；55°(V) Constant Directional |
Sensitivity(@1w/1m) | 98 dB SPL |
Powerating(AES) | 450 W |
Nominal Impedance | 8 ohm |
Maximum SPL | 130 dB (Peak) |
Drivers | LF 1 x 15"（75 mm voice coil) woofer HF 1 x 44 mm voice coil compression driver |
Physical data | |

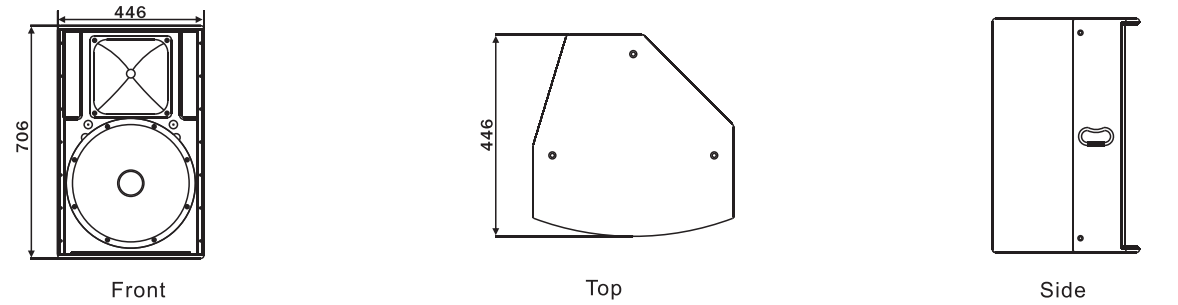

Dimension | 706x446x446mm |
Weight | 31Kg |
Speaker Cables | 1+1-（Signal Input & Loop） |
Connectors | 2 x NL4MP Neutrik Speakon connectors |
Materials | 18 mm，24 mm birch plywood |
Finish | Black water paintings |
Grille | Black epoxy mesh grille with acoustically reticul lated foam |
-
