CL18P

Applications	Feature
Conference system	Wavefront Coupling Technology
Medium size performance	Working with CL5, compact 18inch subwoofer speaker
	Direct radiation type small subwoofer, the limit of LF can be as low as 35Hz (-10db）

Technical parameters

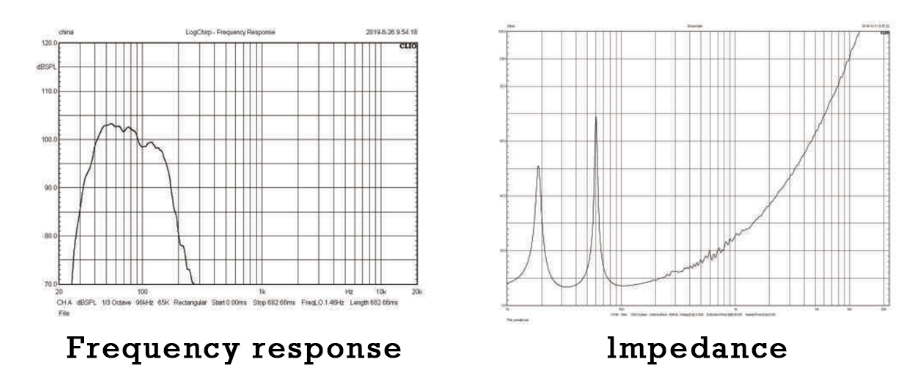

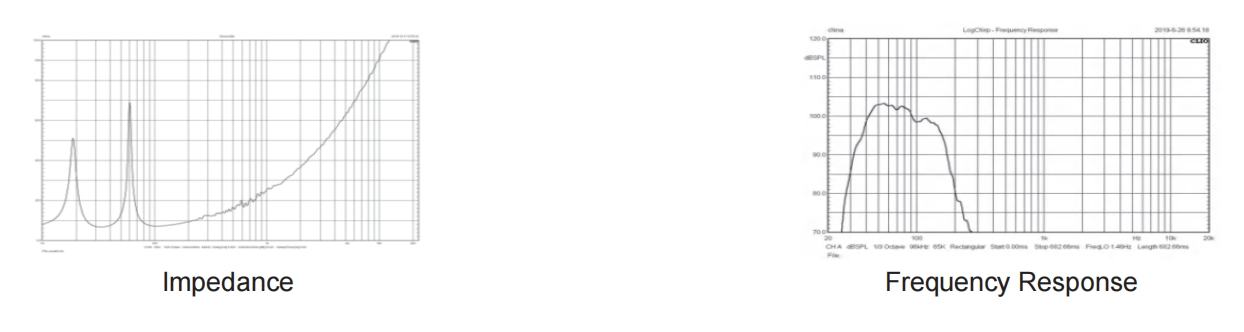

Frequency response	40Hz~120Hz(±3dB)；35Hz~180Hz(-10dB)
Nominal Coverage(-6dB)	Omnidirectional
Max SPL	134 dB SPL peak
Drivers	LF 1x18" woofer (75mm voice coil)
Power Rating （AES）	1500W
Power requirement	200- -240V ~ 50-60Hz
Amplifier module	Dual channel 2000W
Power requirement	0.82%
Snr Cooling system Output electric circuit	104dB Airflow from back to front, Forced cooling Class D circult

Physical data

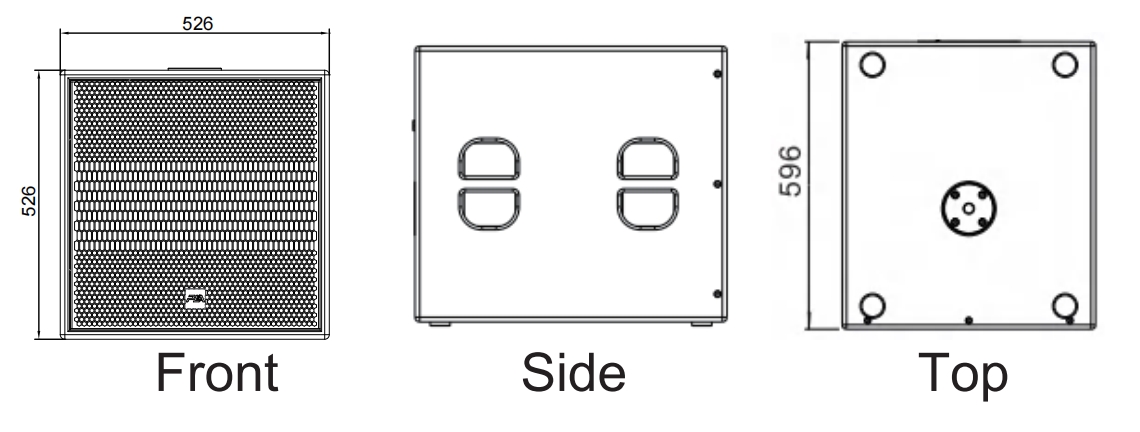

Dimensions	534×526×596mm
Weight	40kg
Connectors	USB+RJ45+XLR+powerCON+SpeakON
Materials	15mm, 1 8mm Baltic birch plywood
Finsh	Black Polyurea paintings
Grille	Black epoxy mesh grille with acoustically reticulated cloth
