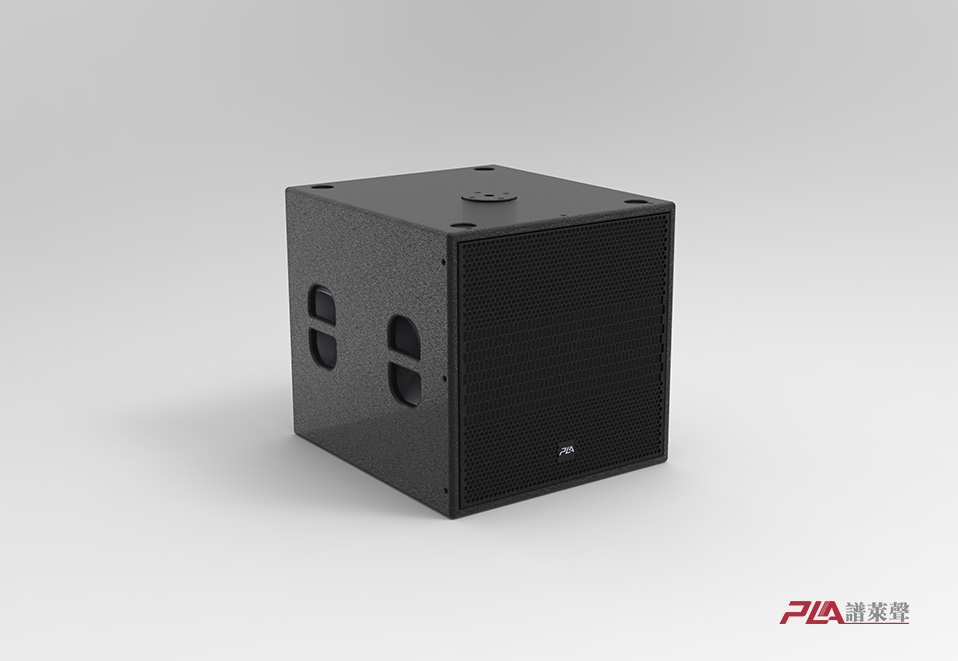

CL18
| Applications | Feature | |
| Conference system | Wavefront Coupling Technology | |
| Medium size performance | Working with CL5, compact 18inch subwoofer speaker | |
Direct radiation type small subwoofer, the limit of LF can be as low as 35Hz (-10db | ||
| Technical parameters | ||

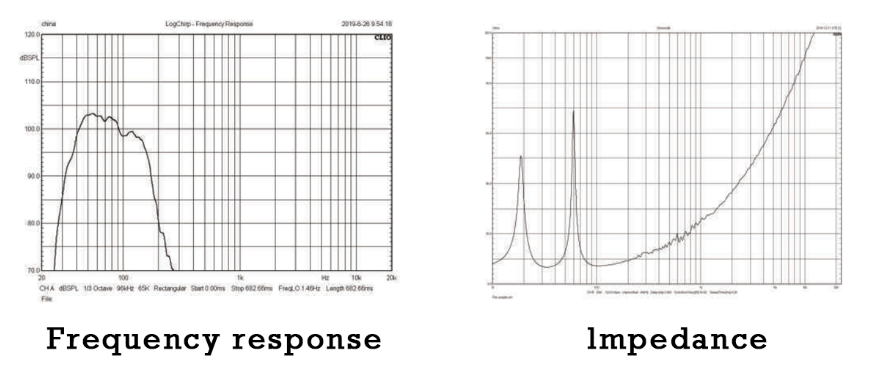

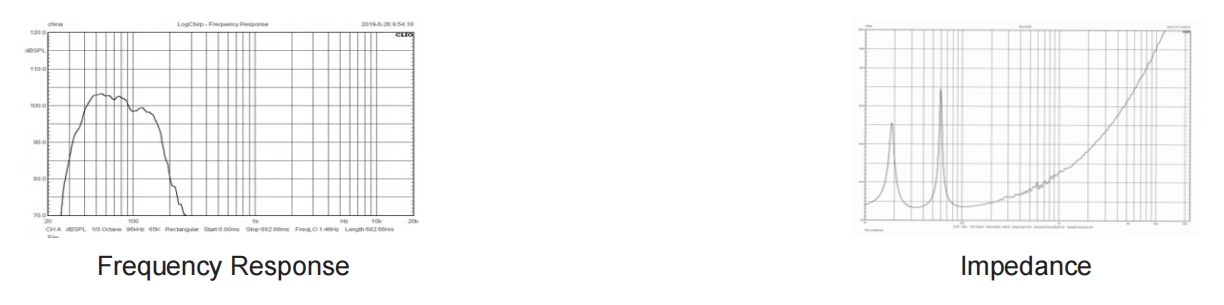

| Frequency response | 40 Hz ～120 Hz (±3 dB )；35 Hz ～180 Hz (-10 dB ) | |
| Nominal Coverage(-6dB) | Omnidirectional | |
| Sensitivity (@1w/1m) | 97dB | |
| Power Rating （AES） | 1500W(AES) | |
| Nominal Impedance | 8 ohm | |
| Max SPL | 134 dB SPL peak | |
| Drivers | LF 1x18" woofer (75mm voice coil) | |
| Physical data | ||

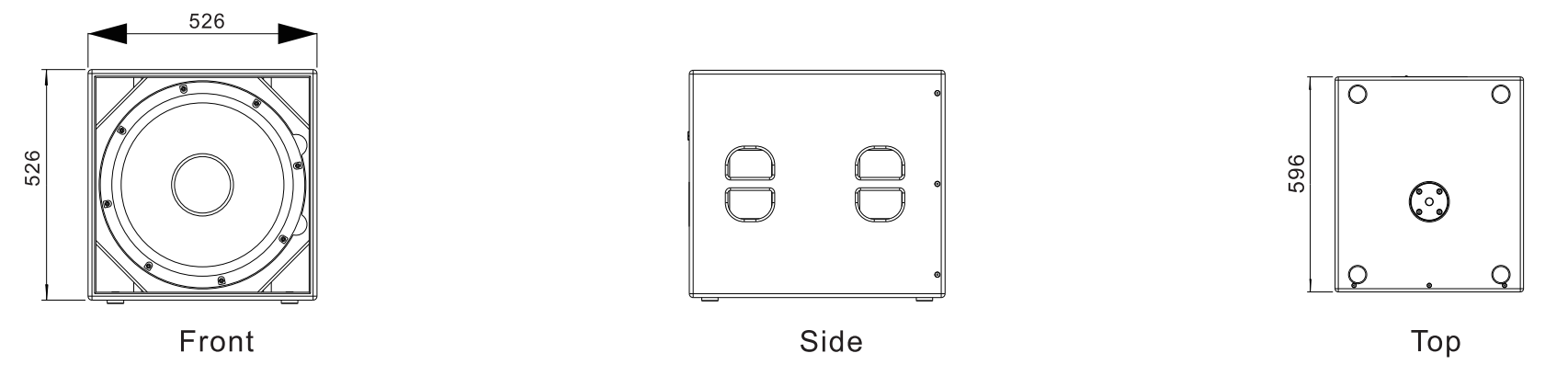

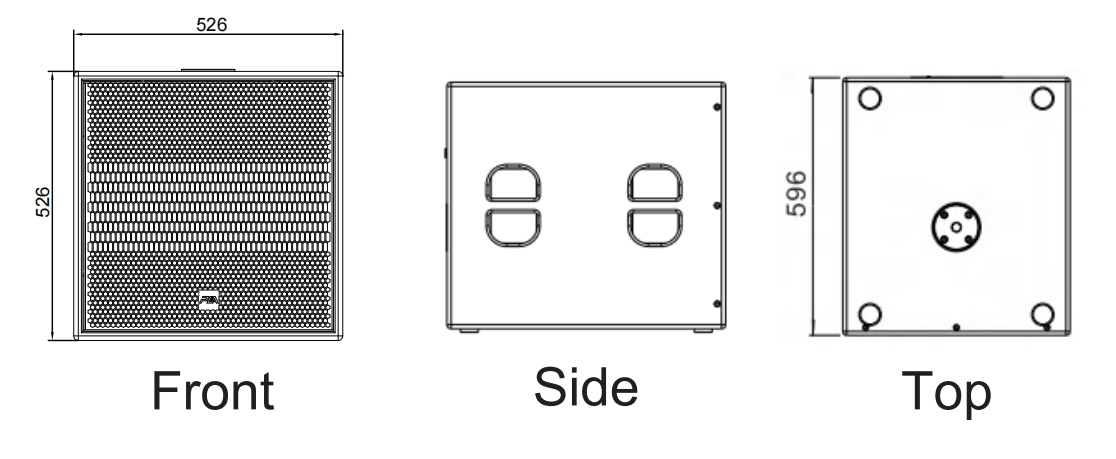

| Dimensions | 534×526×596mm | |
| Weight | 40kg | |
| Connectors | USB+RJ45+XLR+powerCON+SpeakON | |
| Materials | 15mm, 1 8mm Baltic birch plywood | |
| Finsh | Black Polyurea paintings | |
| Grille | Black epoxy mesh grille with acoustically reticulated cloth |
-
