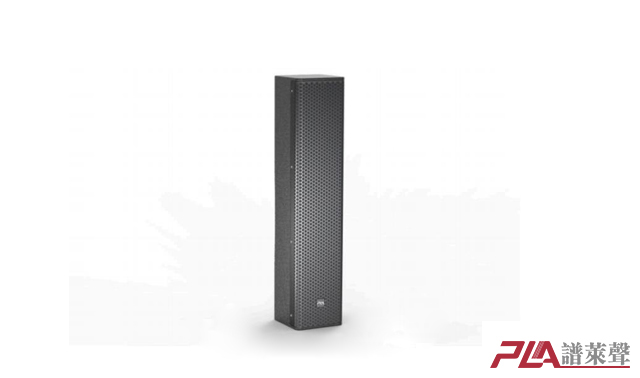

CL5

Applications

Feature

Conference system

Wavefront Coupling Technology

Flexible and easy to use with subwoofer PO-SUBK, it can be used

independently or use both upper and lower

Medium size performance

Top to top mode, rotate 180 degrees through the top column,

achieve horn to horn Turn level 100 degrees, long column of

vertical 60 degrees and achieve long distance Amplification;

Technical parameters

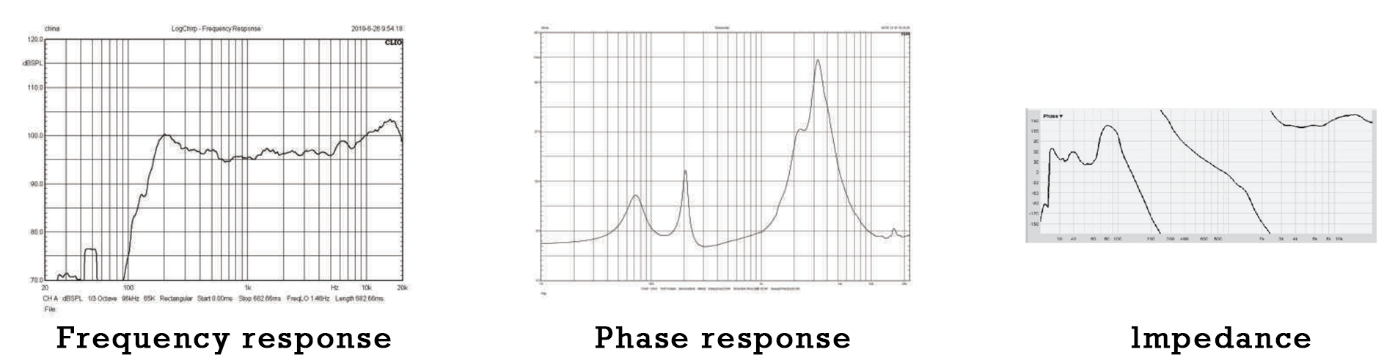

Frequency response	200 Hz ~ 18 kHz (± 3dB )：150 Hz ~ 20 kHz (-10dB )
Nominal Coverage(-6dB)	100°（H）×45°（V）（Up 15°，down 30°）
Sensitivity (@1w/1m)	97 dB SPL
Power Rating （AES）	520W(AES)
Nominal Impedance	8 ohm
Max SPL	128 dB SPL peak
Drivers	LF 4x5" woofer (45mm voice coil) HF 1x1.75" neodymium compression driver

Physical data

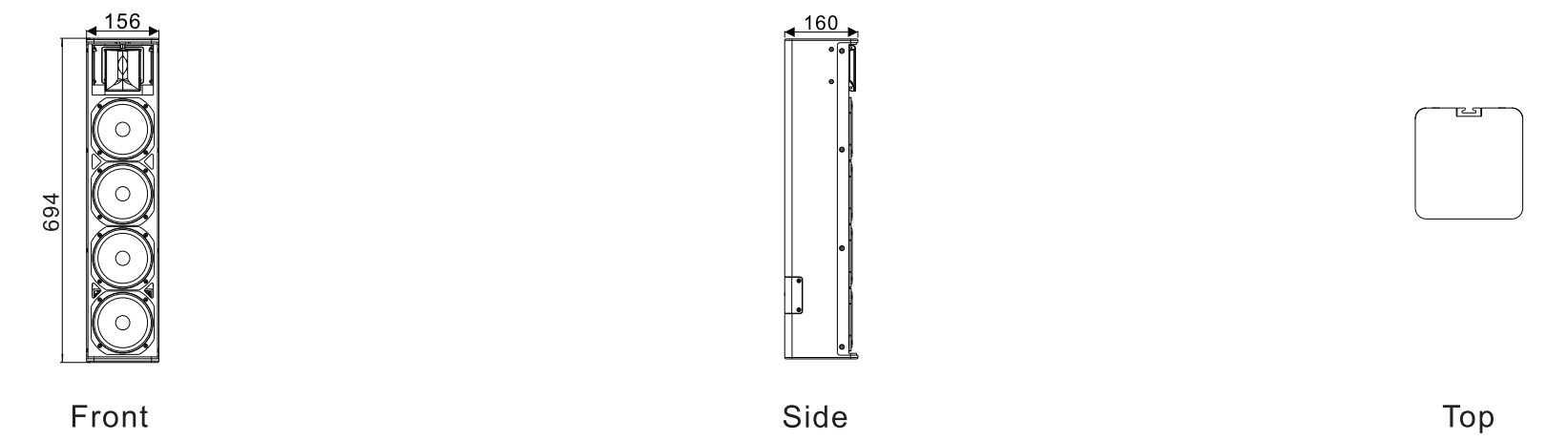

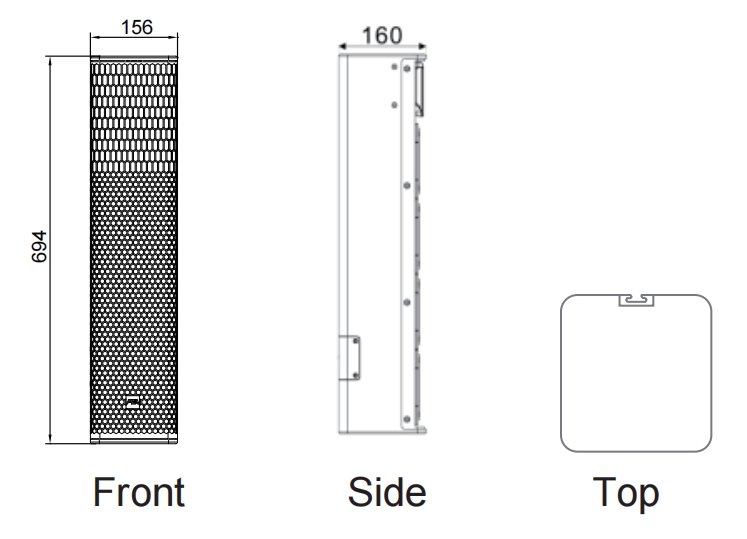

Dimensions	694×156×160mm
Weight	11kg
Connectors	NEUTRIKNL4 X 2
Speaker Cables	1+1-
Materials	9mm, 12mm Baltic birch plywood
Finsh	Black Polyurea paintings
Grille	Black epoxy mesh grille with acoustically reticulated cloth
Rigging	0、-5° degree adjustable ( with adjustable support )
