P2DI Dual Channel Passive DI Box


P2DI is a two-channel passive DI box designed for audio and video professionals, using a specially customized high-performance bormo-alloy isolation transformer for conversion impedance and balanced transmission, while providing excellent common mode rejection.The transformer eliminates the noise of the earthing loop. In order to further reduce the susceptibility to noise, the transformer adopts full shielding package and makes earthing treatment, thus preventing the frequency and electromagnetic induction. The P2DI DI box is made of an integrated aluminum body to further insulate against external interference, while being extremely durable to protect switches and connectors from damage.

Input interfaces for high-impedance instruments include stereo RCA, 6.35mm and 3.5mm interfaces, and -10dB consumer linear level devices. After the signal is converted through P2DI, the output standard 600 ohm microphones level is directly connected to the microphones input of the mixer.These features make the P2DI DI box an ideal interface for laptops, CD players, ipodss and other sound sources. The P2DI works well when these devices need to be connected to a public address system.

Features:

※ Excellent audio flexibility and passiveDI

※ High performance bormo alloy isolating transformer

※6.35mm,RCA and 3.5mm inputs

※ Double channel design, more convenient to use

※ The wide dynamic input level is attenuated by -15db

※ Transformer isolation eliminates the grounding loop

※ Converts high impedance loss to low impedance micropho e level

※ Completely passive

Frequency Response: 20Hz~18.5kHz(±0.2dB)

Dynamic Range: 128dB

Maximum Input:+18dB@20Hz

Total Harmonic Distortion:0.01%20Hz~20kHz

Phase Deviation:1°@100Hz 8°@20Hz

Input Impedance:140kΩ,Imbalance

Output Impedance:150Ω,Balance

Dimension:105mm(L)×98mm(W)×52mm(H)

Net Weight:520g

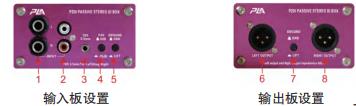

Description:

(1) 6.35mm INPUT

(2) RCA INPUT

(3) 3.5mm TRS INPUT

(4) -15dB PAD: -15db signal attenuation switch. When the button is pressed out, 0dB is attenuated. When the button is pressed,The signal will be attenuated by 15dB.

(5) RIGHT CH GND : CH R ground switch. When the button is pressed out, INPUT L and INPUT R are connected together. When the button is pressed, the INPUT R will be separated from the INPUT L

(6) LEFT OUTPUT :Balanced XLR output

(7) GROUND LIFT :On/off switch. When the button is pressed out, the input is grounded. When the button is pressed, Input disconnect the ground.

(8) RIGHT OUTPUT :Balanced XLR output.
