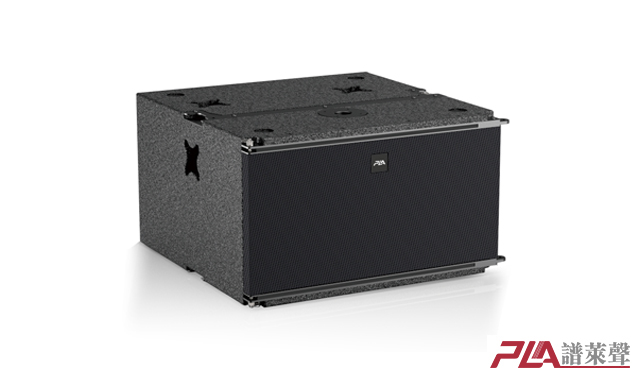

LS10S
| Applications | Feature | |
Touring performance | Subwoofer with LS10 | |
Club, multi-function hall | The most cost-effective small and medium-sized line array | |
Churc | Extremely compact , Small enclosure, light weight | |
High SPL, great dynamic headroom | ||
| Multi-angle adjustable mounting mode with adjustable support | ||
| Technical parameters | ||

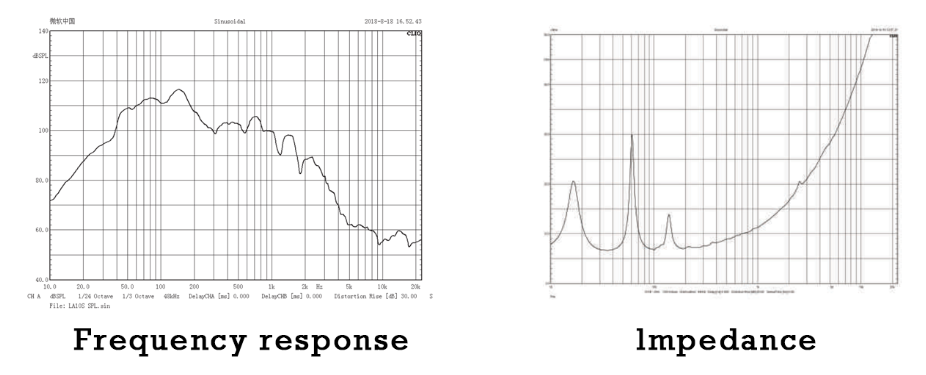

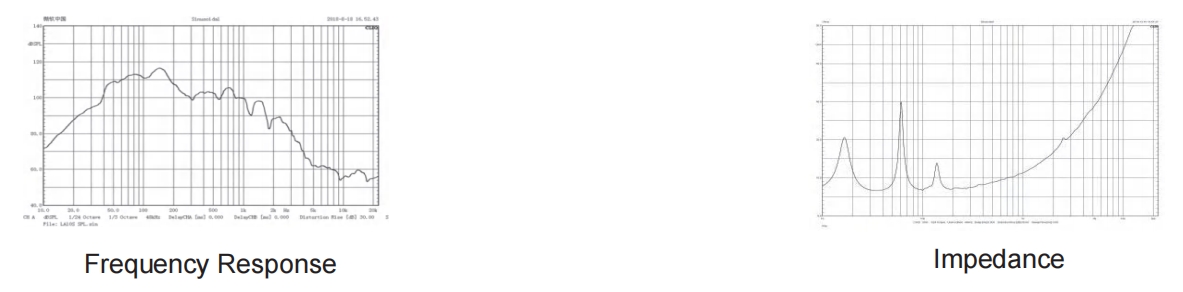

| Frequency response | 40Hz~ 150Hz(士3dB ) | |
| Nominal Coverage(-6dB) | Omnidirectional | |
| Sensitivity (@1w/1m) | 98 dB SPL | |
| Power Rating （AES） | 500W(AES | |
| Nominal Impedance | 8ohm | |
| Max SPL | 125 dB SPL peak | |
| Drivers | 1 X 15"woofer (75mm voice coil) |
| Physical data | ||

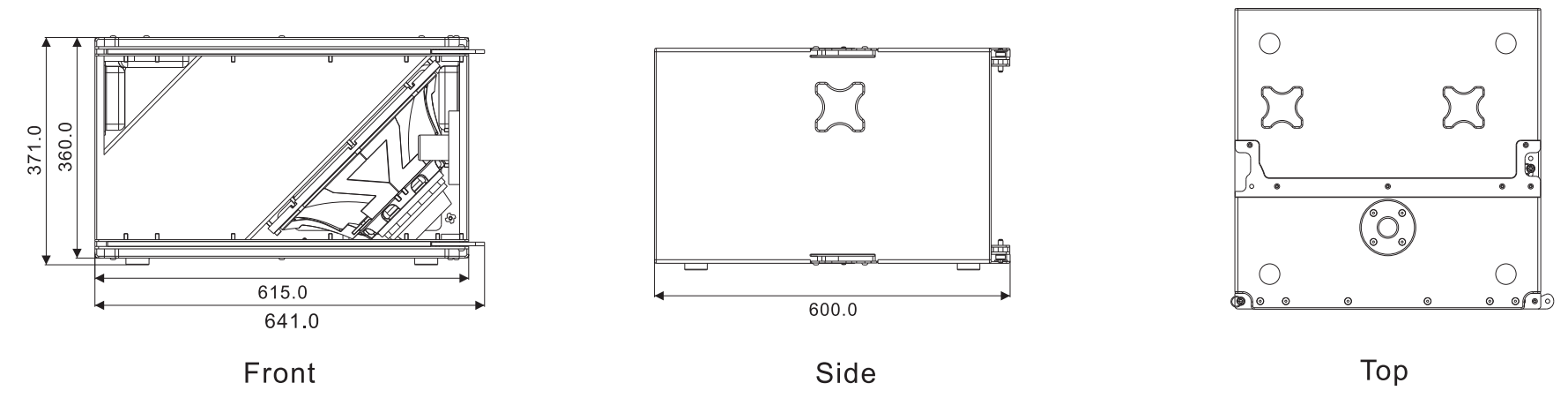

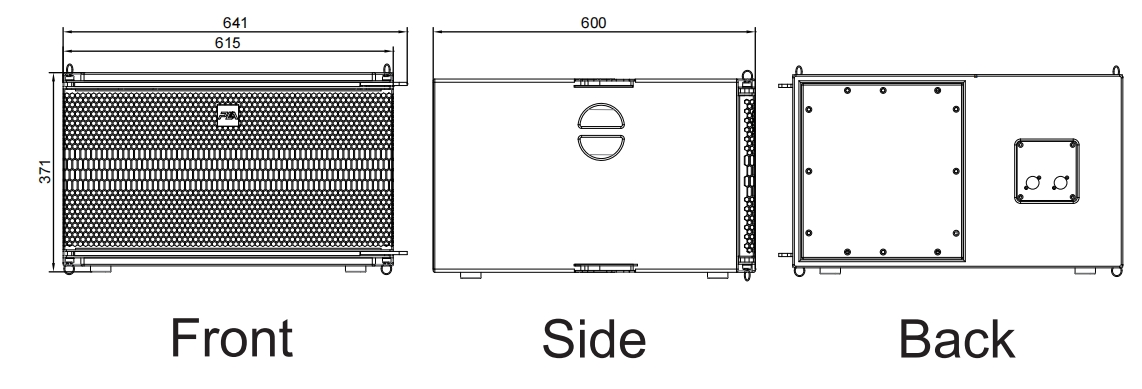

| Dimensions | 371 X 641 X 600m | |
| Weight | 35Kg | |
| Connectors | 2 X NL 4 connectors | |
| Speaker Cables | 1+1-... | |
| Materials | 15mm, 18mm Baltic birch plywood | |
| Finsh | Black Polyurea paintings | |
| Grille | Black epoxy mesh grille with acoustically reticulated clot | |
| Rigging | 0,-5 degree adjustable |
-
