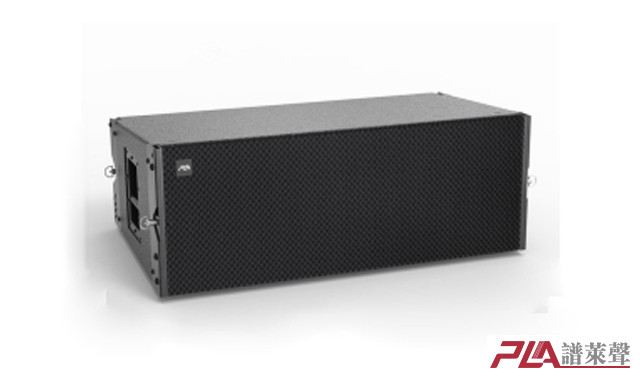

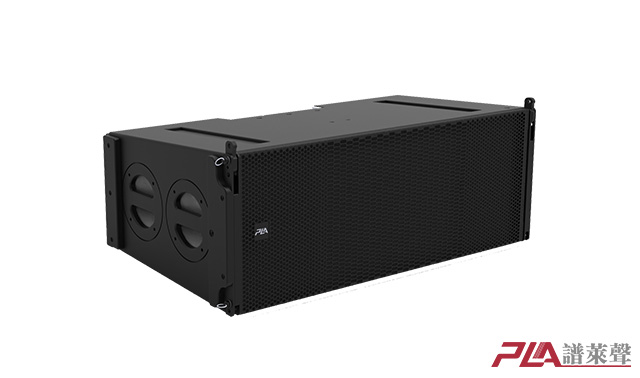

LS212
| Application | Feature | |
| Touring Performance | Large three-way drive three-way frequency system, equipped with WPE wave diameter isometric sound guide | |
| Stadium | Middle and high frequency coaxial structure, so that the sound image is accurate | |
| Theatre | All neodymium high sensitivity unit,great dynamic margins | |
| With WCT (Wavefront Coupling Technology) | ||
| Technical specification | ||

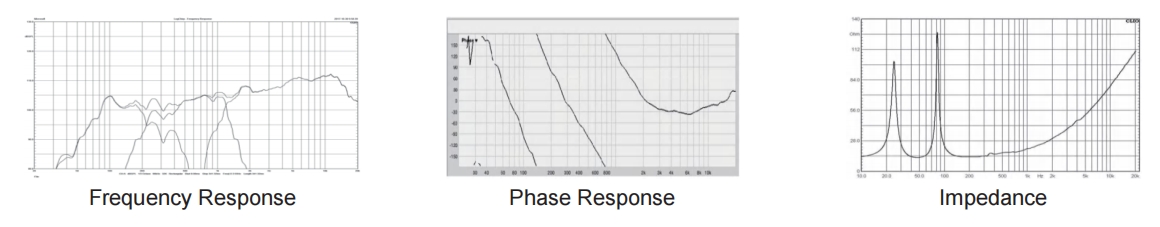

| Frequency Respond | 50 Hz ~ 18 kHz(±3 dB)；40 Hz ~ 20 kHz(-10 dB) | |
| Nominal directivity(-6dB) | 100°(H),7.5°(V Adjustable) | |
| Sensitivity(@1w/1m) | HF:113 dB SPL MF:105 dB SPL LF:100 dB SPL | |
| Powerating | HF/MF/LF:160/350/800 W | |
| Impedance | HF/MF/LF:16/16/12 ohm | |
| Maximum SPL | HF:135/145 dB SPL peak MF:130/140 dB SPL peak LF:129/139dB SPL peak | |
| Transducers | HF:2x3" Phase Correction compression driver MF:1x10" All Condition Woofer Midrange LF:2x12"All Condition Woofer | |

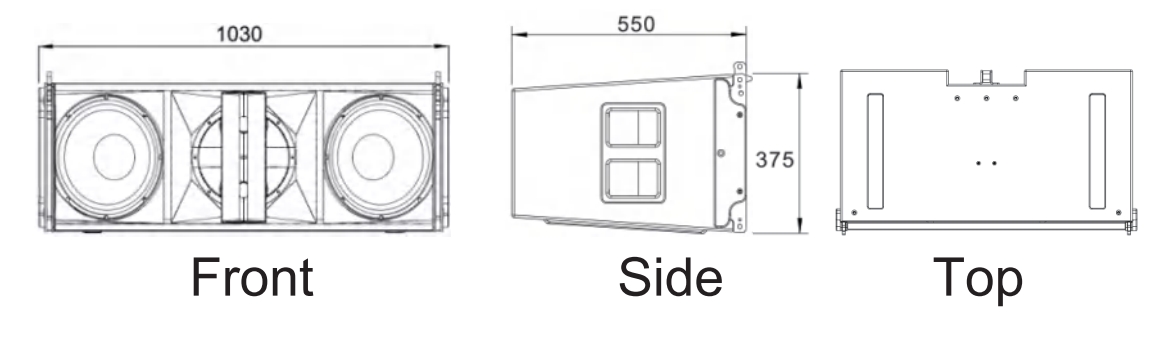

| Physical data | ||
| Dimensions | 1000x550x367mm | |
| Weight | 63kg | |
| Connectors | WP7*2,Neutrik NL8*2 | |
| Speaker Cables | WP7:1-2+...LF,3-4+...MF, 5-6+...HF NL8:1+1-...LF,2+2-...MF,3+3-...HF,4+4-...NC | |
| Material | Imported multi-plywood Environmentalwaterproof and anti corrosion coatings | |
| Finsh | Black Polyurea paintings | |
| Cover | Black epoxy mesh grille with acoustically reticulated cloth | |
| Angles | 0、1、2、3、4、5、6、7.5°Adjustable | |
-
