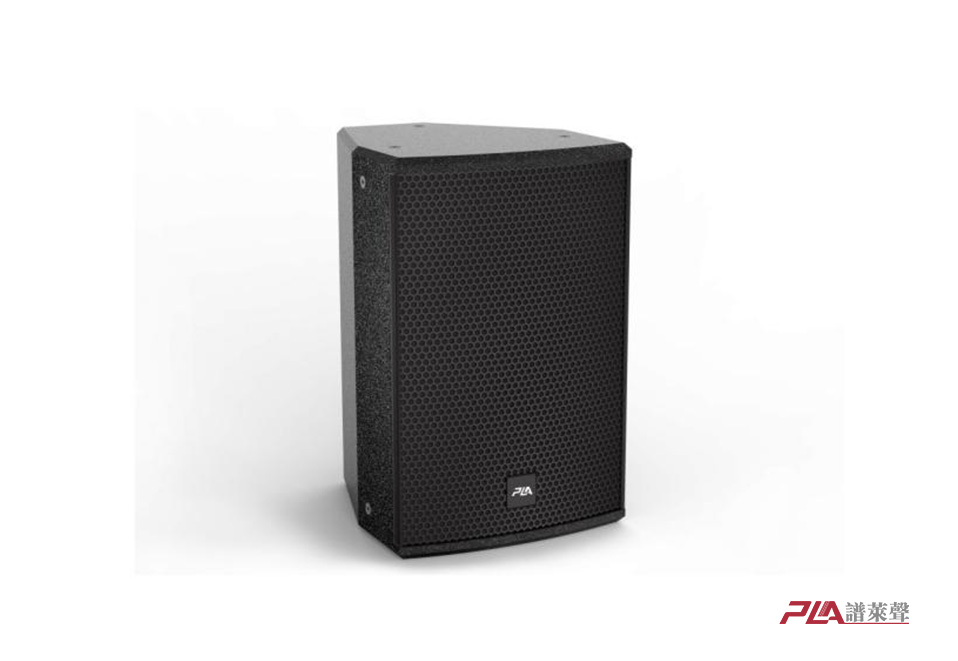

PM10

Applications	Feature
Bar	Frequency response special design to avoid auditory fatigue
Theatre	Rotatable and asymmetrical horn
Stage Monitor	13x M8 rigging points
	With PCT(Phase Coherent Technology) technology
	Pole mount socket

Technical parameters

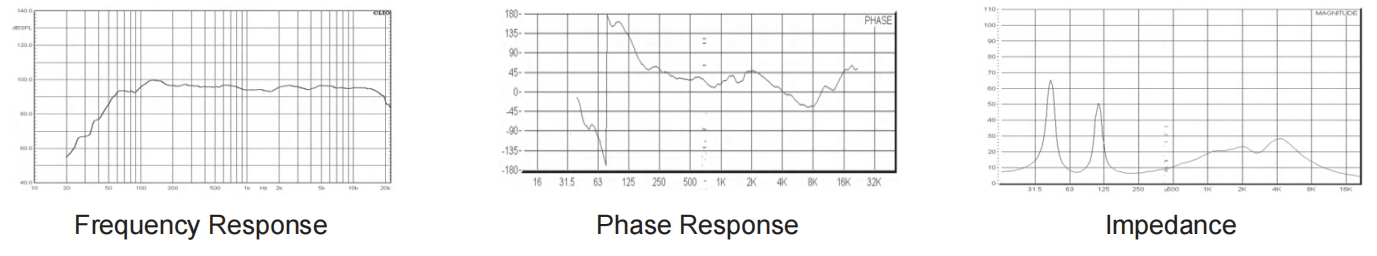

Frequency response	70 Hz-18 kHz(+3dB) 55 Hz-20 kHz(-10dB )
Nominal Coverage(-6dB)	100°(H)×55°(V) Constant directivity
Sensitivity (@1w/1m)	95dB SPL
Power Rating	350W
Impedance	8 ohm
Maximum SPL	120dB/130dB SPL peak
Transducers	LF:1x10" All Condition Woofer HF:1x1.75"Phase Correction HF compression driver

Appearance

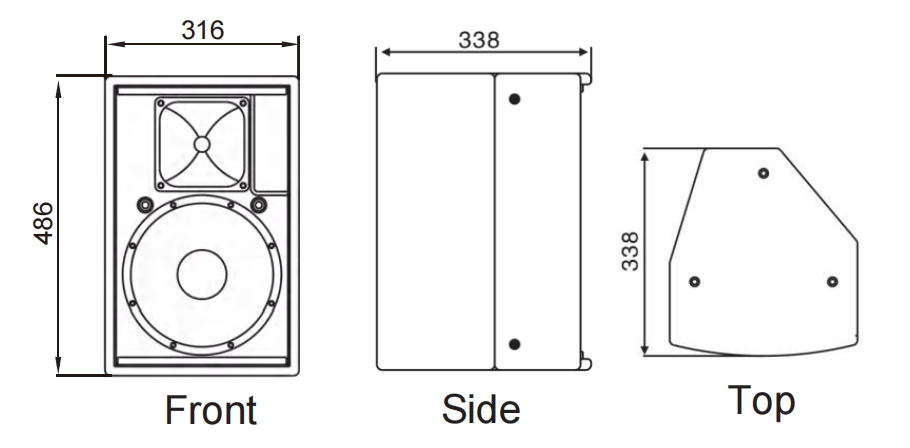

Dimensions	316x338x486mm
Weight	19Kg
Material	Imported multi-plywood Environmentalwaterproof and anti-corrosion coatings
Finsh	Black polyurea paintings
Cover	Black epoxy mesh grille with acoustically reticulated cloth
Grille	DPR(Double Perforation Rate )technology design, in which the perforation rate of the middle and high transmission area is more than 90%,Greatly improves the sound transmission efficiency and reduces the acoustic.
